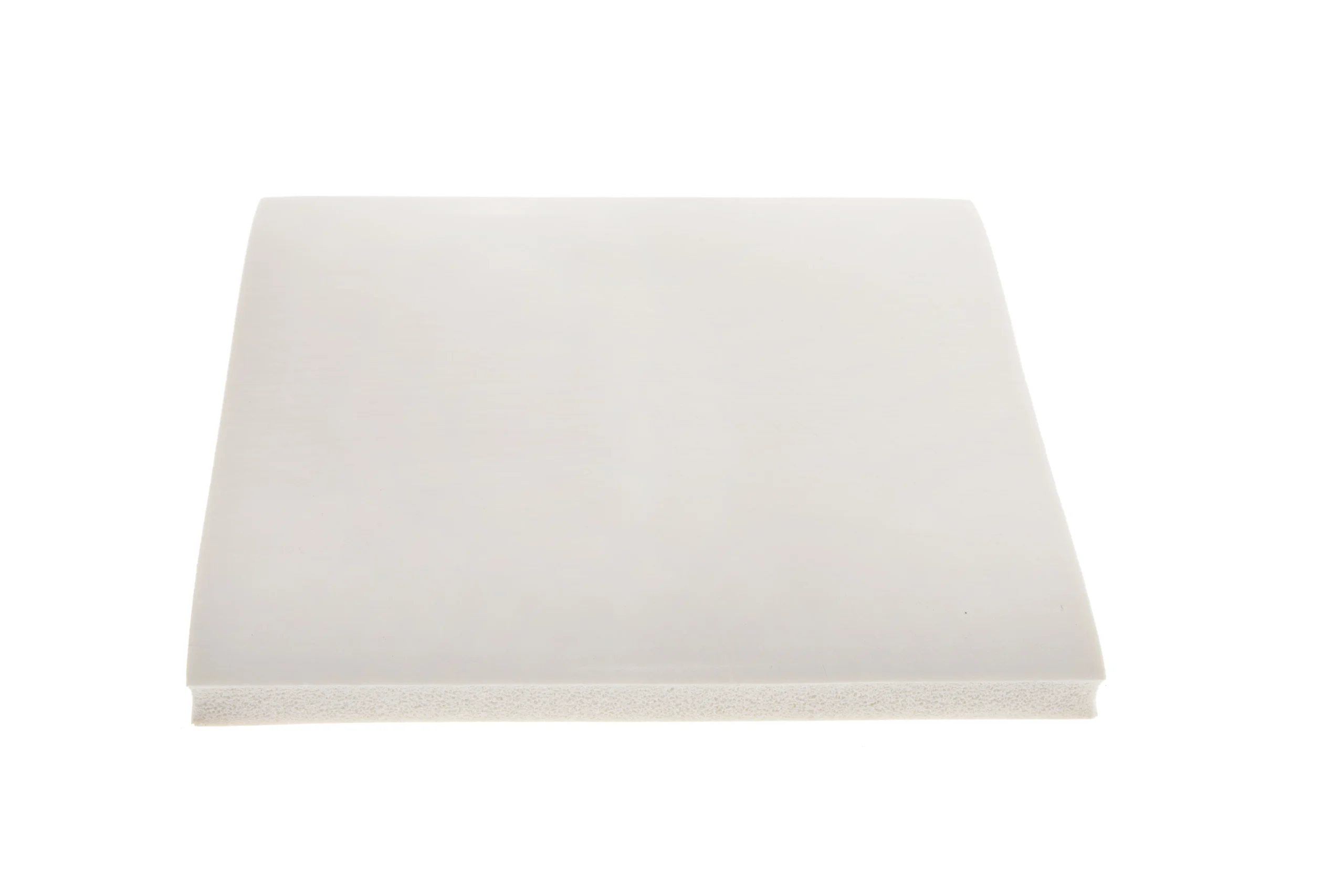

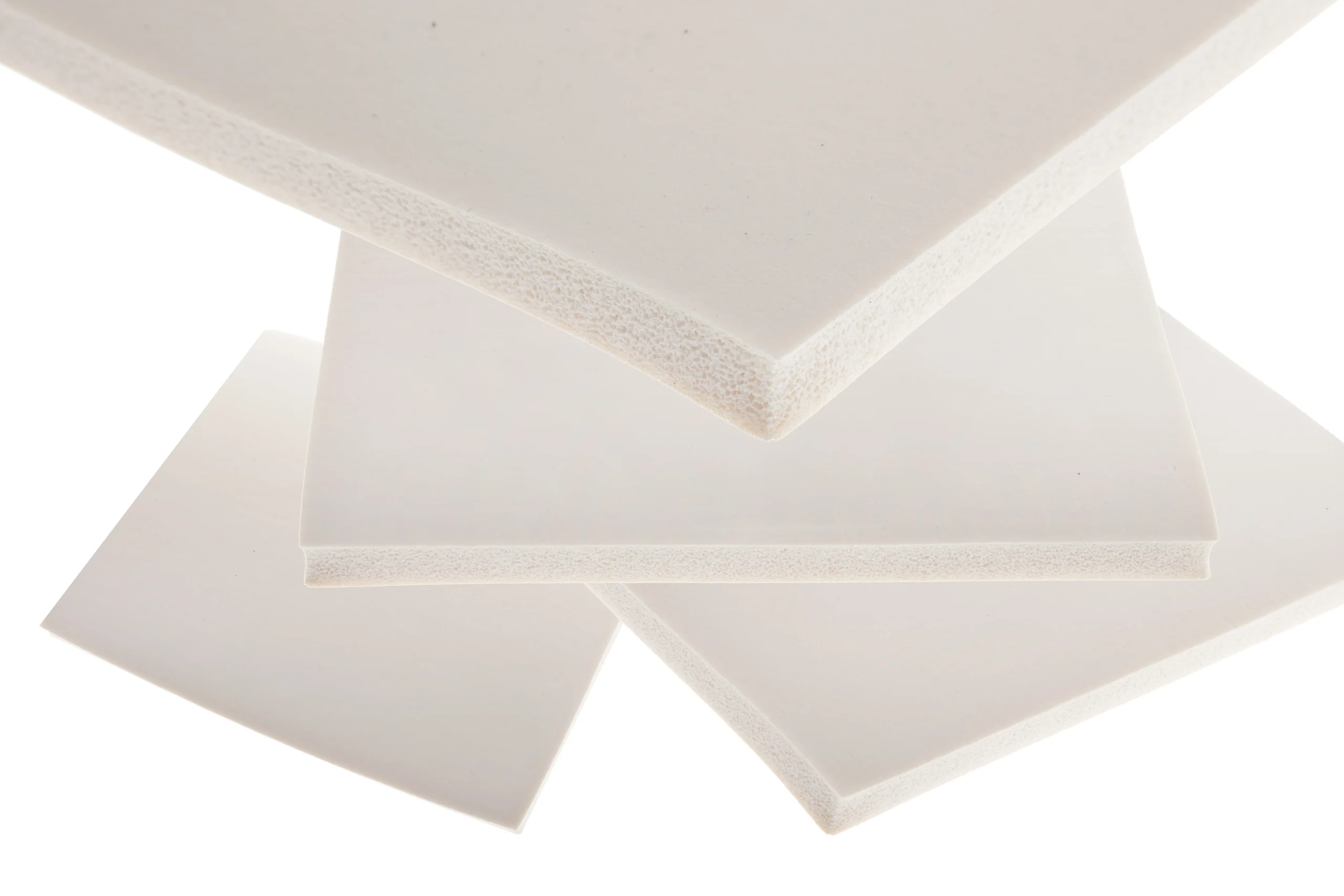

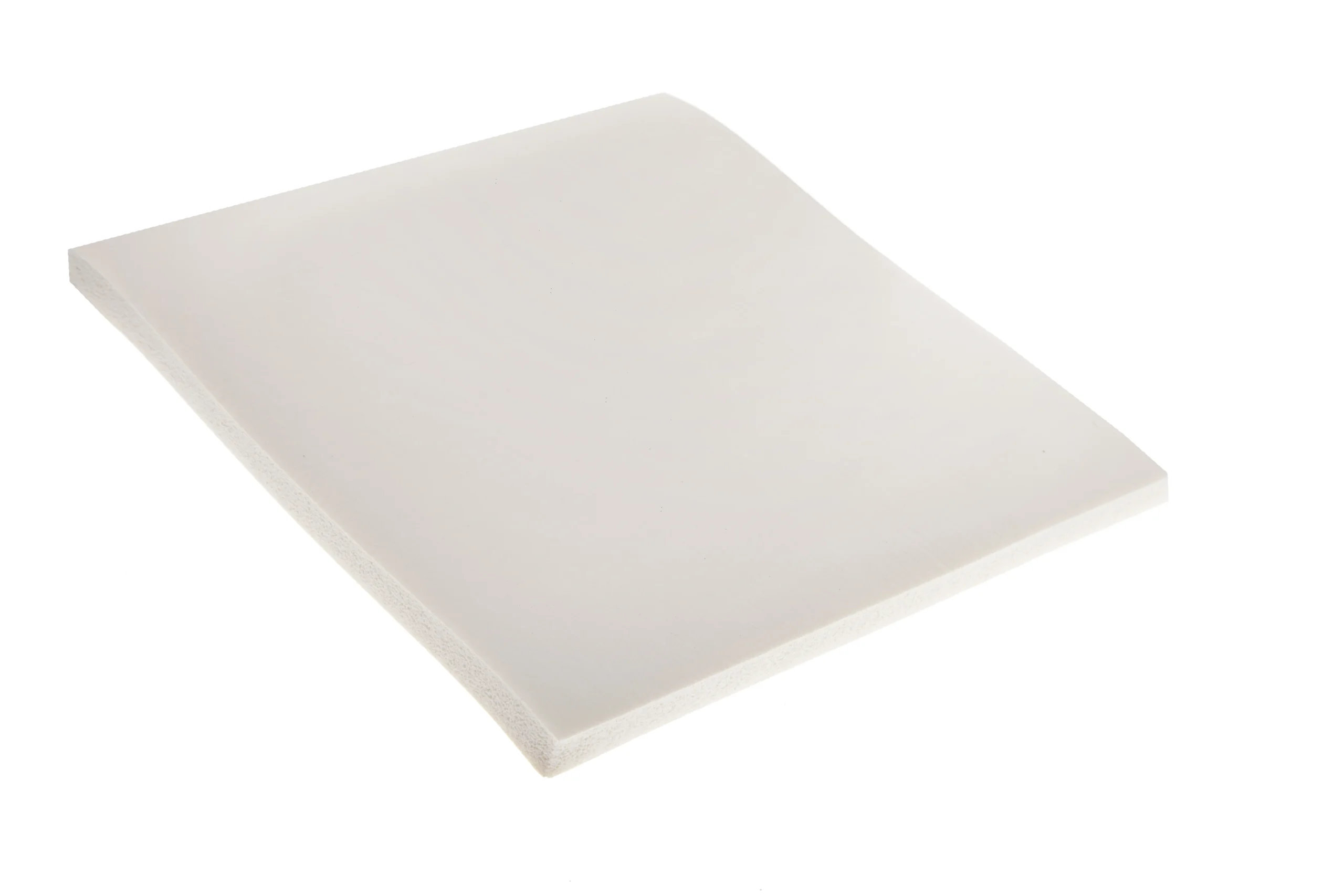

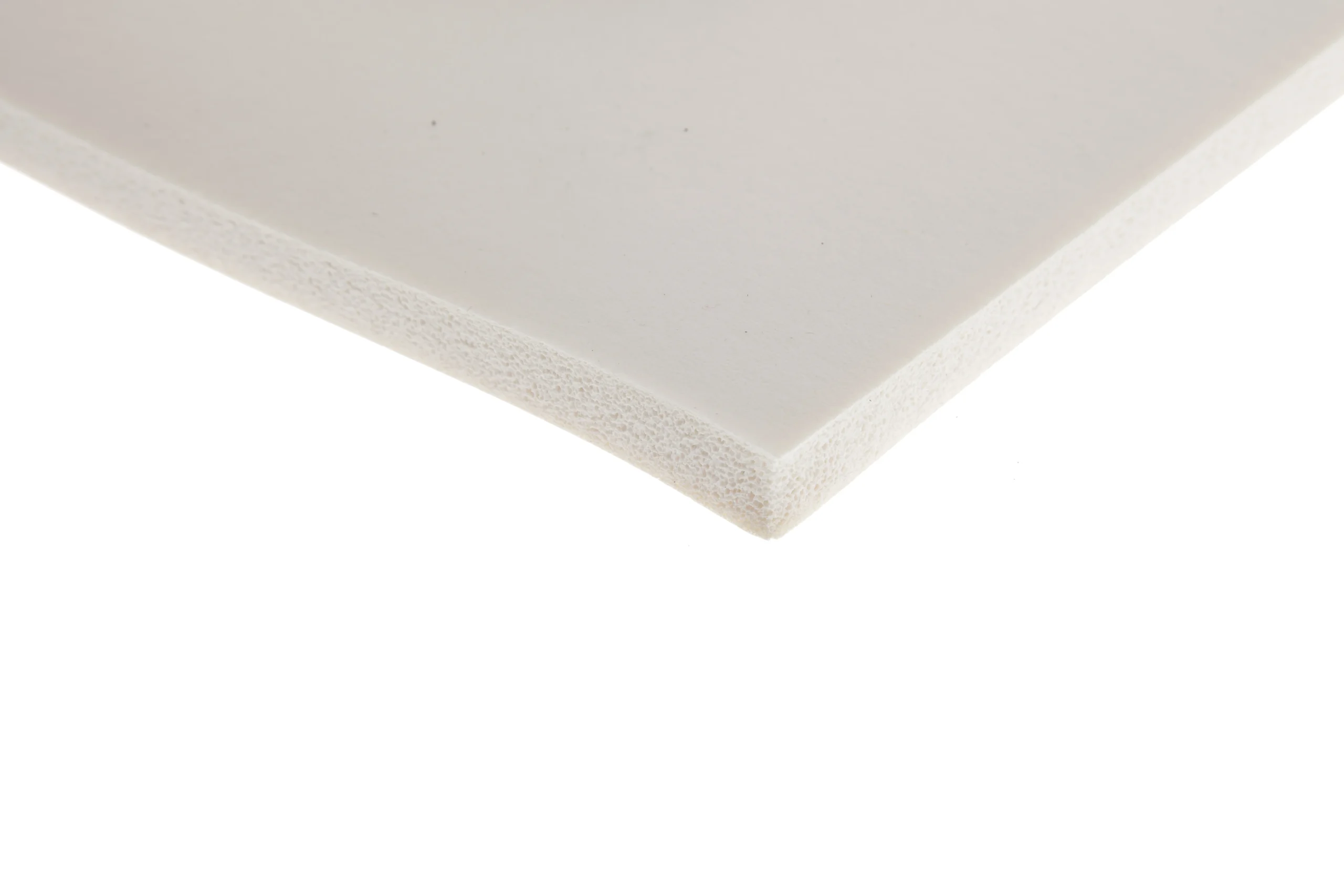

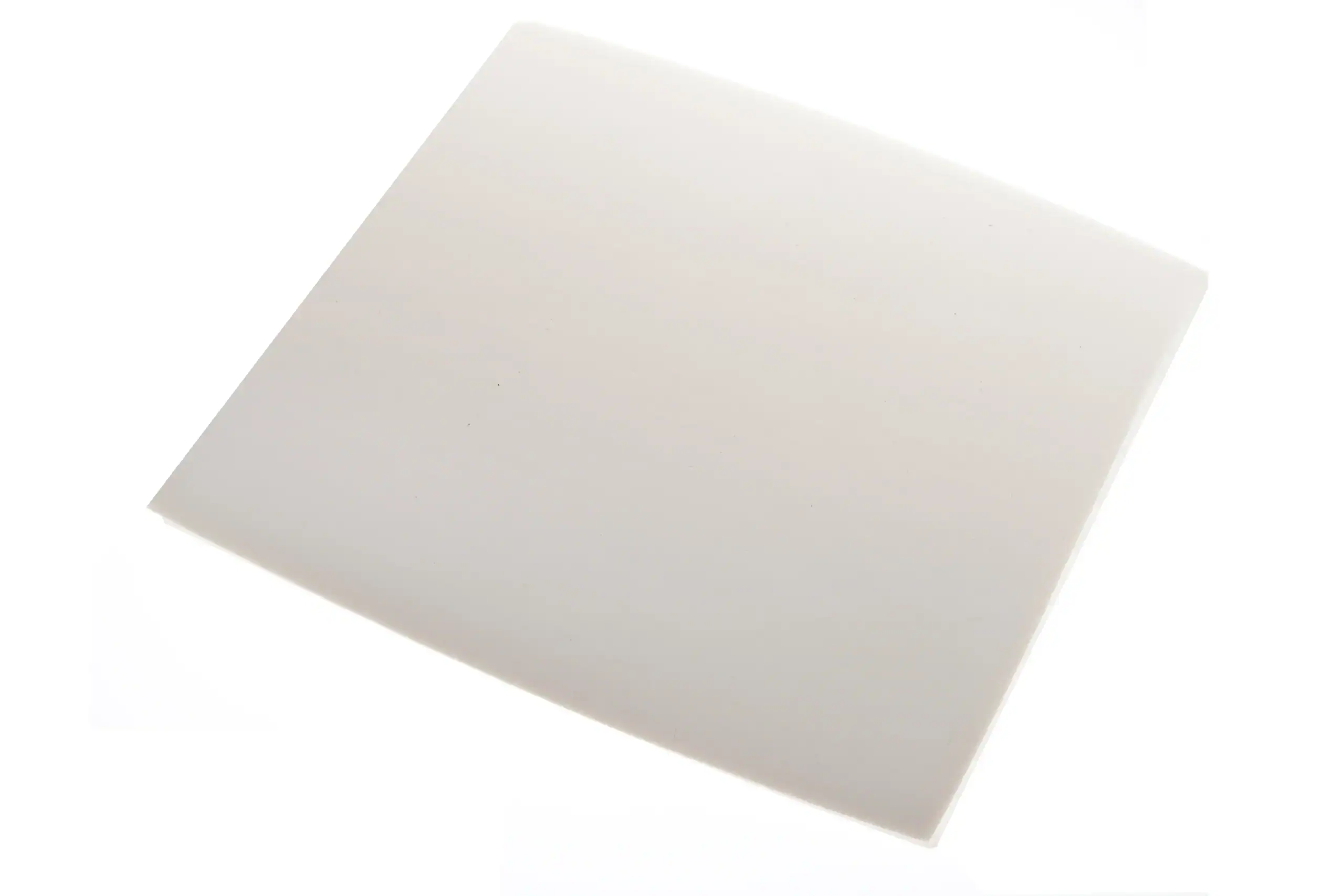

High Temperature Silicone Sponge Sheet

Product Codes: VGD10HTSH, VGD16HTSH, VGD24HTSH, VGD33HTSH

Product Description

Superior Heat Protection
Our high temperature silicone sponge sheets are ideal for applications requiring exceptional heat resistance. Available in standard 1m x 10m rolls, thicker sheets come in 1m x 1m sizes. We offer thicknesses ranging from 1.5mm to 25mm to meet your specific needs.

Enhanced Properties
These sheets provide the same benefit as our standard grade silicone sponge but with a broader temperature range. They offer excellent air and watertight properties, combined with a soft and flexible material. They can with stand temperatures from -60ᵒC to +270ᵒC (up to 300ᵒC intermittently), making them perfect for food production and pharmaceutical applications.

Compliance
Our high temperature silicone sponge sheets meet the flammability requirements of FAR 25/JAR 25/ CS 25 Appendix F, Part (a)(1)(iv) and (a)(1)(v) horizontal flammability standards.

Compliances

REACH and RoHS Compliant icon badge.
REACH and RoHs Complaint
Aerospace approved icon badge.
FAR 25 / JAR 25 / CS 25 Approved
Automotive standard icon badge.
Automotive standard PART 571MBSS302

Facts

Material Type Silicone Sponge
Temperature Range -60ᵒC to +270ᵒC (300ᵒC Intermittent)
Density Range 200-550kg/m³ (10-33 lb/ft³)
Colour Availability Off-White (Red Oxide on enquiry)
Roll Width 1000mm
Available thicknesses 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 20mm, 25mm

Main Features

- Soft, pliable material
- Enhanced operating temperature range
- Air and watertight
- Ozone, UV and weathering resistant
- Bacteria and mildew resistant

Availability Format

Self adhesive backing icon badge.
Full roll lengths icon badge.
Cut lengths icon badge.
Custom gaskets icon badge.

Target Industries

Marine
LED Lighting
Industrial
Heating and Ventilation (HVAC)
Energy Generation
Electronics
Civil Engineering
Automotive

Technical Details

  • Mechanical Properties

    These figures are only intended as a guide and should not be used in preparing specifications.

  • General Characteristics

    These figures are only intended as a guide and should not be used in preparing specifications.
