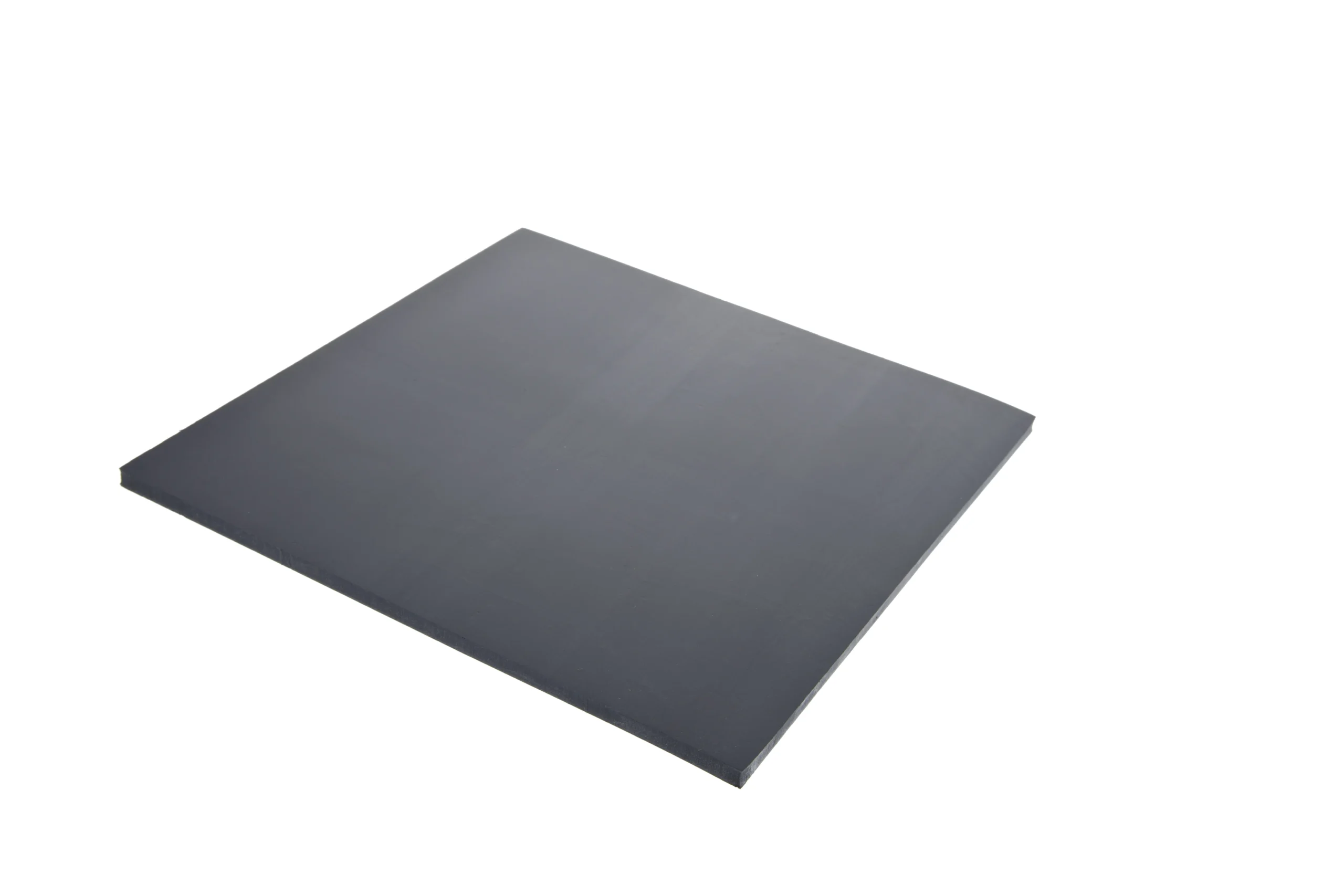

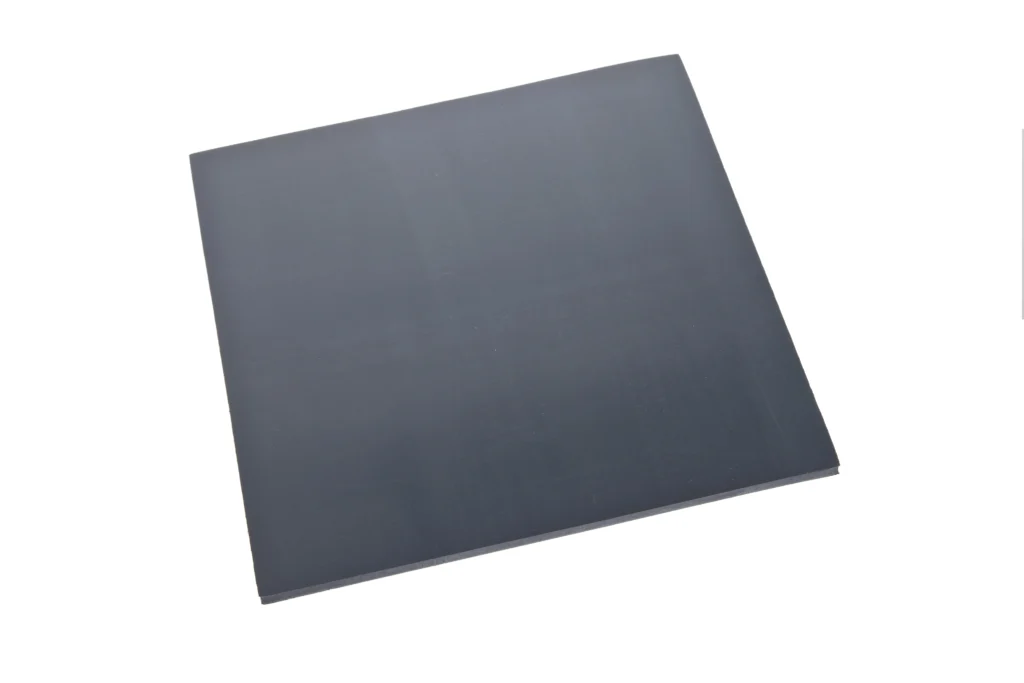

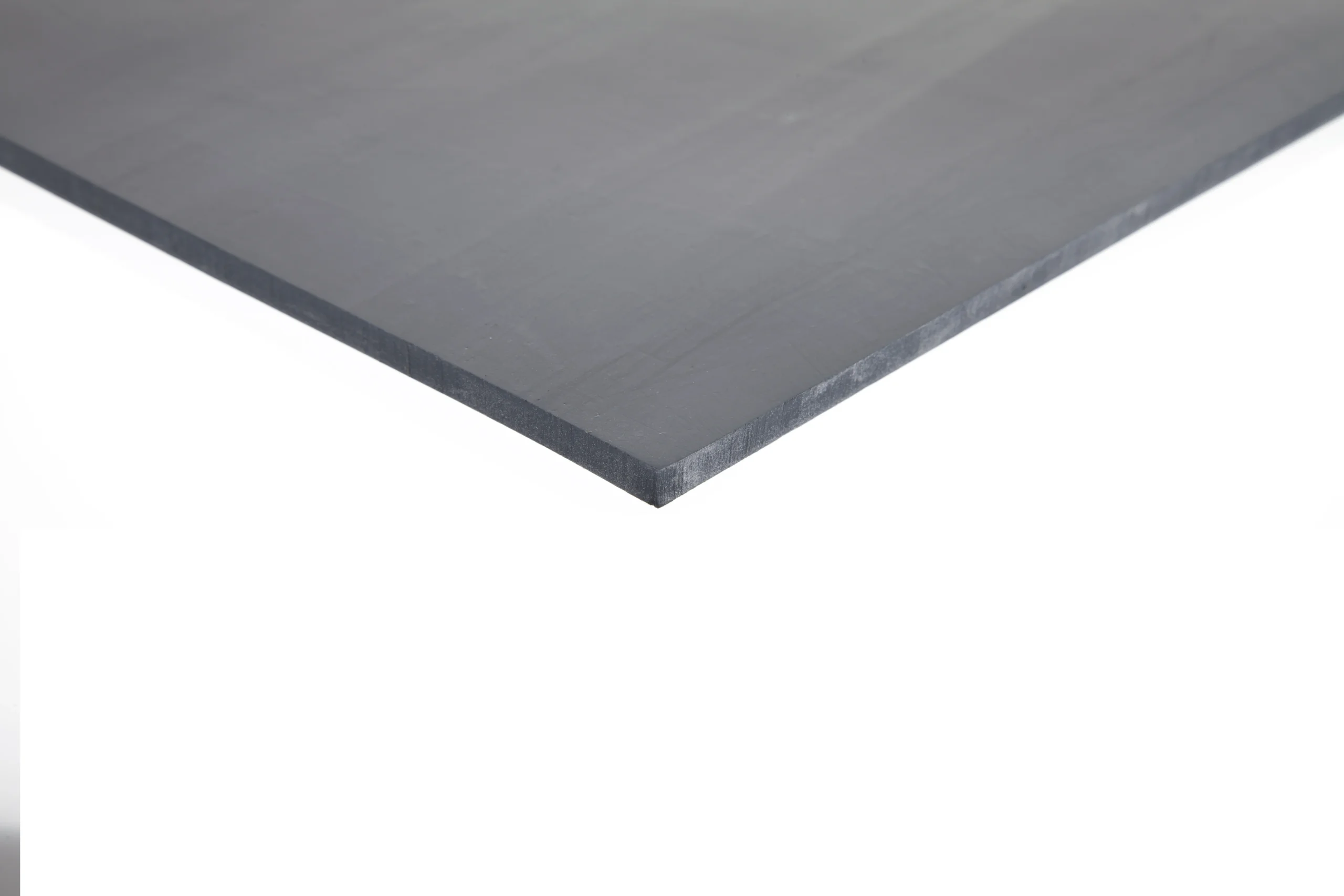

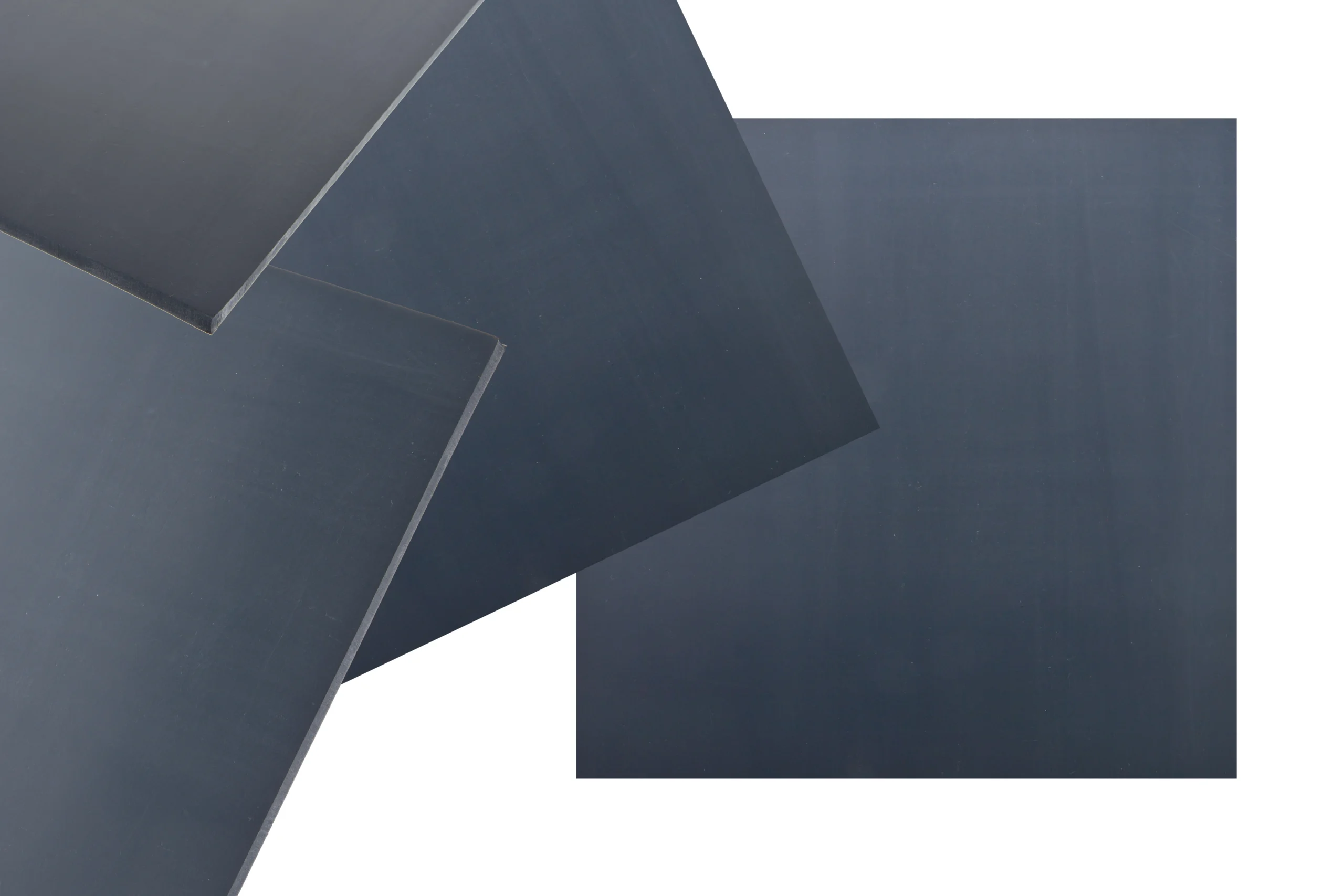

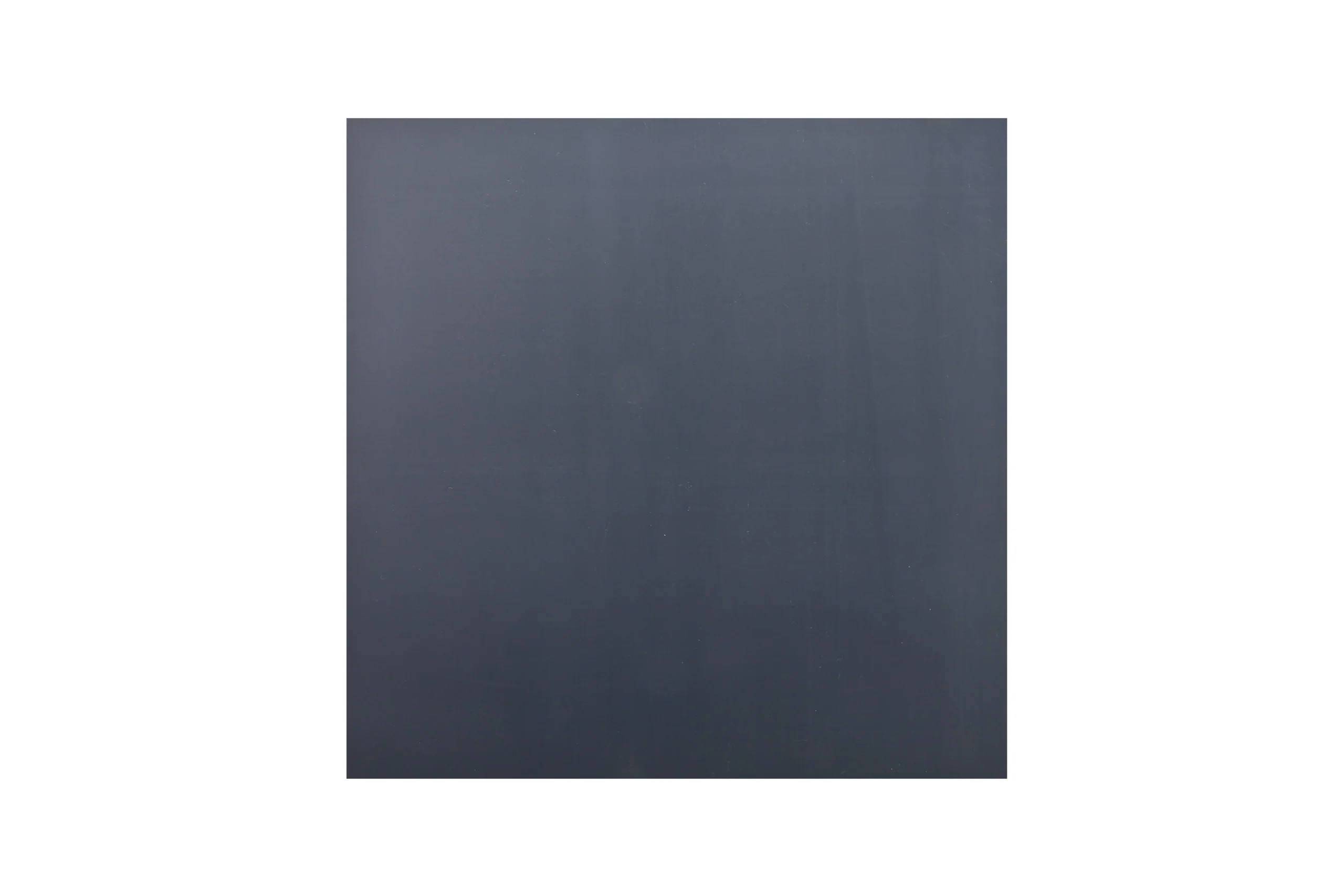

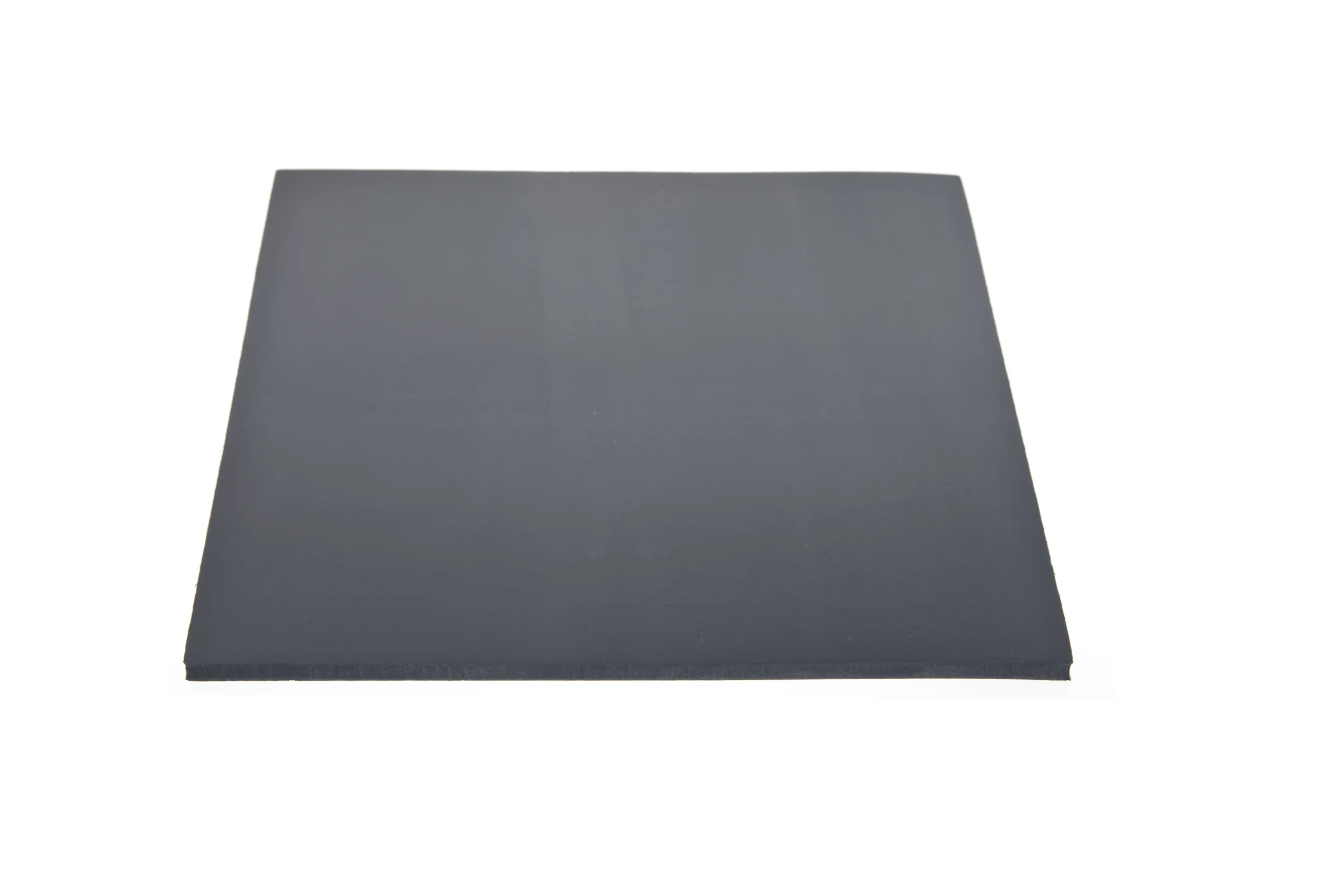

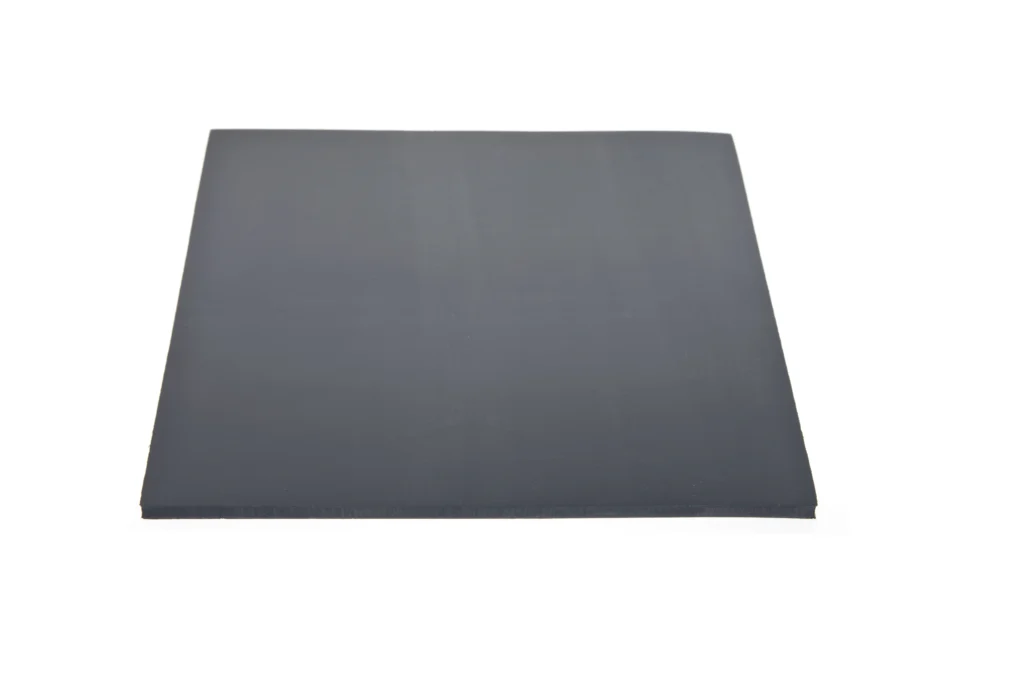

Flame Retardant MF775 Silicone Sheet (Rail Spec)

Product Code: VFR(2)SH

Product Description

Ideal for Fire and Heat Applications
Our flame retardant silicone sheets are perfect for applications involving fire or direct heat contact, offering exceptional self-extinguishing properties. Available in thicknesses ranging from 1mm to 8mm to suit your specific needs.

Safety Standards
At 3mm thickness, our flame retardant silicone sheeting meets UL94V0 flammability standards and conforms to BS6853, Cat 1A, and TS EN 45545-2 safety standards. This ensures the product has been independently tested and certified as fire safe

Compliances

UL94-V0 icon badge.
UL94-V0 Tested (no yellow card)
REACH and RoHS Compliant icon badge.
REACH and RoHs Complaint
NF-F-16-101 12 FO icon badge.
NF F 16-101 12 F0
LUL 1-085R icon badge.
LUL 1-085
EN45545-2 icon badge.
EN45545-2 European railway standard for fire safety
BS-6853 Cat 1A icon badge.
BS6853 Cat 1A

Facts

Material Type Silicone Rubber
Temperature Range Up to +200ᵒC
Hardness Range 73 Shore A
Colour Availability Grey (other colours available on request)
Roll Size 1000mm wide x 10m long
Available Thicknesses 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm

Main Features

- Flame retardant / self-extinguishing properties
- Wide working temperature range
- Good mechanical properties
- Ozone, UV and weathering resistant

Availability Format

Self adhesive backing icon badge.
Full roll lengths icon badge.
Cut lengths icon badge.
Custom gaskets icon badge.

Target Industries

Rail and Mass Transit
Marine
LED Lighting
Electronics
Civil Engineering
Automotive
Aerospace

Technical Details

  • Mechanical Properties

    These figures are only intended as a guide and should not be used in preparing specifications.

  • General Characteristics

    These figures are only intended as a guide and should not be used in preparing specifications.

Make An Enquiry

Contact out experienced team of technical advisors for advice, quotations or any other queries.

Required fields are marked with*
